Safety shoes and one-step forming casual shoes material
| Payment Type: | L/C,T/T |
|---|---|
| Terms of Trade: | FOB,CIF |
| Min. Order: | 17600 Kilogram |
| Delivery Time: | 15 Days |
| Packaging: | 220kg/drum |
|---|---|
| Productivity: | 260000tons/month |
| Brand: | Xuchuan Chemical |
| Transportation: | Ocean,Land,Air |
| Place of Origin: | China |
| Port: | Shanghai |
Basic Info
Model No.: XC-6170,XC-8280
Product Description
Characteristic:High strength and cohesive force, good abrasion resistance
Application: Double density sole system for common safety shoes and one-step forming Casual Shoes, outsole
Typical properties of PU matrix
| Name of products | Appearance | Viscoscity (mPa·s/40℃) | Density (g·cm-³/40℃) | Package (kg) |

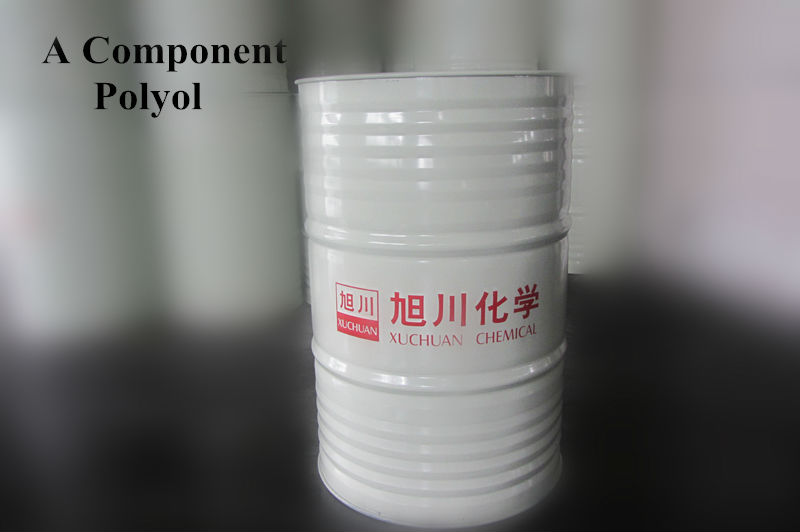

| A-6170 | liqud | 1000-1400 | 1.01-1.02 | 18 |

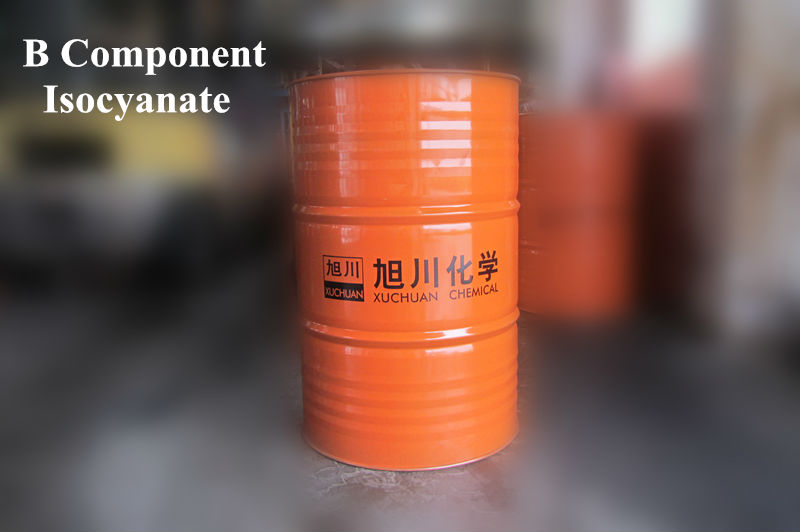

| B-8280 | Yellowish Transparent liquid or waxy | 600-1000 | 1.08-1.2 | 20 |
Materials preheat
A-6170: preheated at 50-60℃ for 6-8℃ hours
B-8280: preheated at 50-60℃ for 8-12 hours
Typical processing parameters & Reaction parameter
| Items | A/B Materials Temperatures(℃) | Mix ratio A+C/B (By weight) | Cream time (s) | End of Rise Time (s) | ||
| Parameter | 40-45/40-45 | sole | mid-sole | sole | mid-sole | 40-50 |
| 100/69-71 | 100/77-79 | 6-8 | 6-7 | |||
| Items | Free Rise Foam Density (g/cm³) | Mold Temperature (℃) | Demold Time (min) | |
| parameter | sole | mid-sole | 45-55 | 3-5 |
| 0.60-1.0 | 0.23-0.27 | |||
The adding content of C-2 should be 300g±10g/18kg
The adding content of water and hardener should be changed according to the reality
Sole: H2O 0-30g/18kg Hardener 0-400g/18kg
Mid-sole: H2O 50-55g/18kg Hardener 0-600g/18kg
Physical properties
| Items | Molded Density (g/cm³) | Hardness (Shore A) | Tensile strength (Mpa) | Elongation (%) | ||||
| Physical properties | sole | mid-sole | sole | mid-sole | sole | mid-sole | sole | mid-sole |
| 0.9-1.1 | 0.45-0.55 | 62-72 | 45-55 | 8.0-11.0 | 3.9-7.9 | 550-750 | 520-690 | |
| Items | Tear strength (kN/m) | Flexing resistance | DIN abrasion (mm³) | Peel strength between sole and mid-sole (kN/m) | ||
| Physical properties | sole | mid-sole | 100000 times no crack | sole | mid-sole | ≥3.5 |
| 25-40 | 16-27 | 60-100 | ---- | |||
Demold time may be prolonged with the increse of sole thickness
These physical data are acquired by testing a sample of 6mm thick
Data listed above are just for reference.The data are subjected to practical production.If other requests for physical properties,please contact us.
XUCHUAN CHEMICAL(SUZHOU) CO., LTD

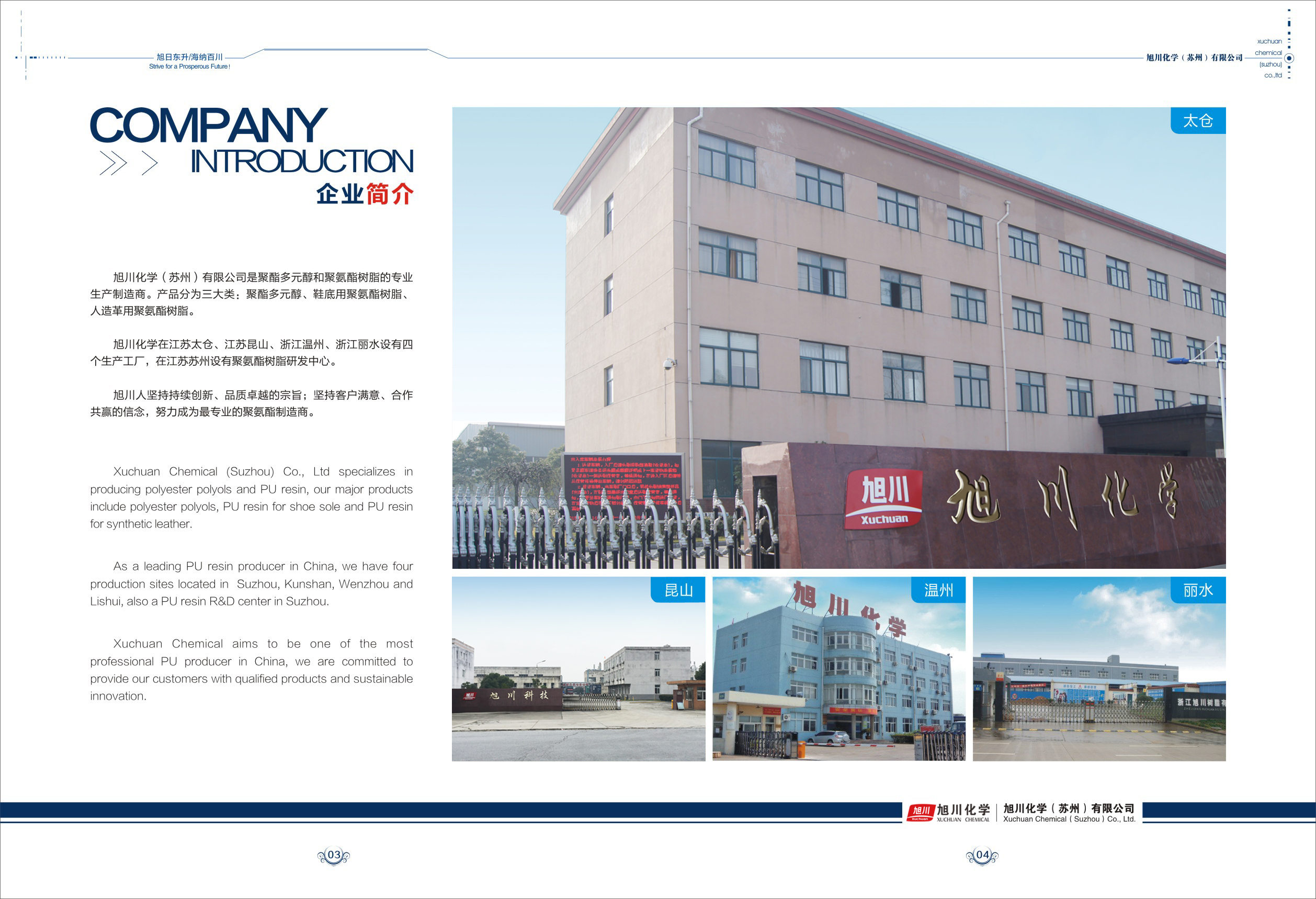

Xuchuan Chemical was established in February 2007 with a registered capital of 500 million RMB . Its headquarter is located in the National High-tech Development Zone of Taicang Port, Jiangsu. It also has four large-scale production bases in Taicang, Kunshan, and Lishui, Zhejiang. The company has 1,200 employees, and production capacity of 700,000 tons per year, and a turnover of US$1 billion in 2019.
The company`s main products are polyester polyols, polyurethane resins for artificial leather, polyurethane system for shoe sole , polyurethane adhesives, polyurethane hot melt adhesives, water-based polyurethane resins, solvent-free polyurethane resins and polyurethane elastomers, covering a wide range of global civilian, industrial, and automotive applications Manufacturing, medical equipment and other application fields, is a national high-tech enterprise specialized in the research and development, production and sales of polyurethane resin products.
